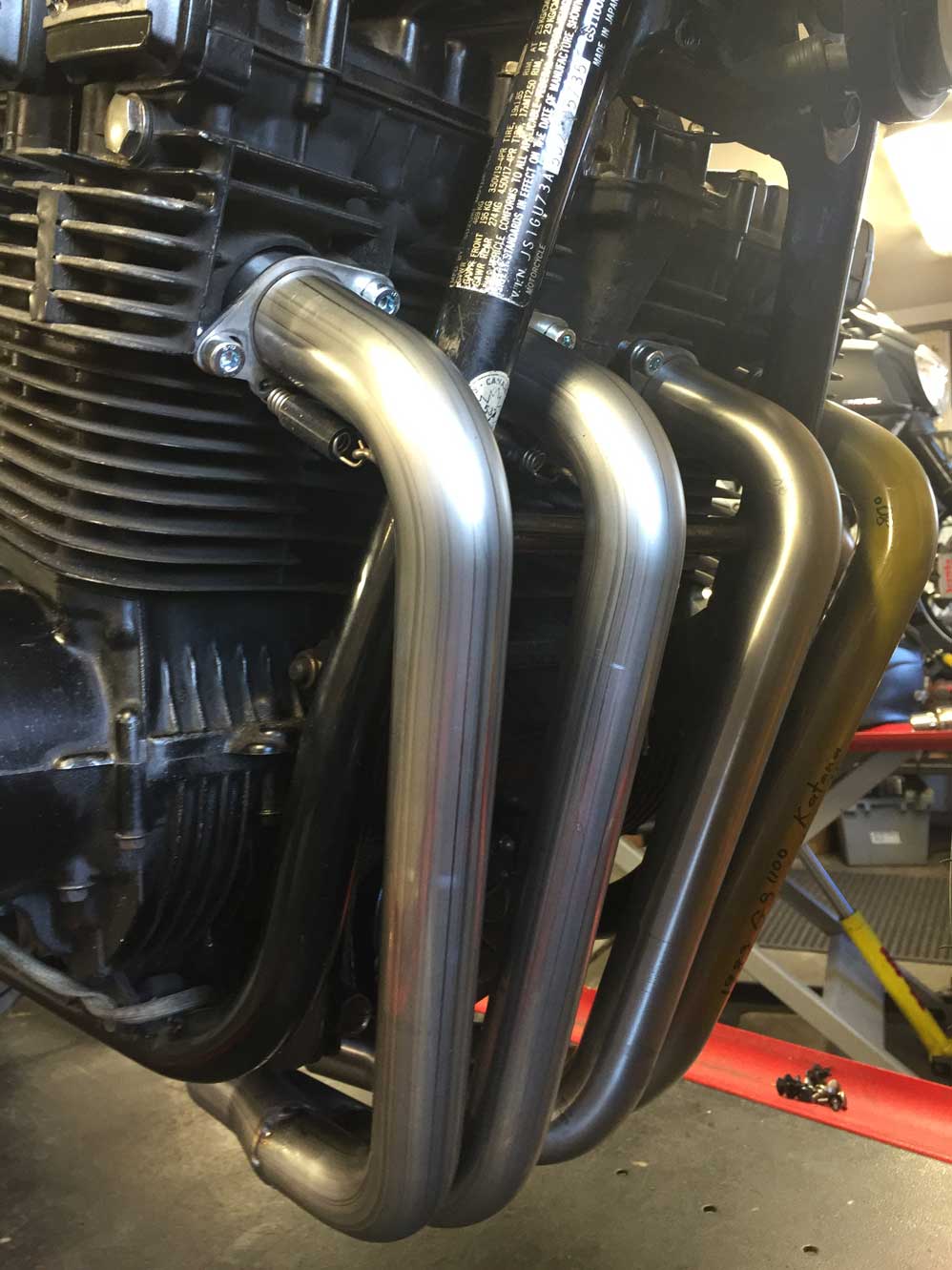

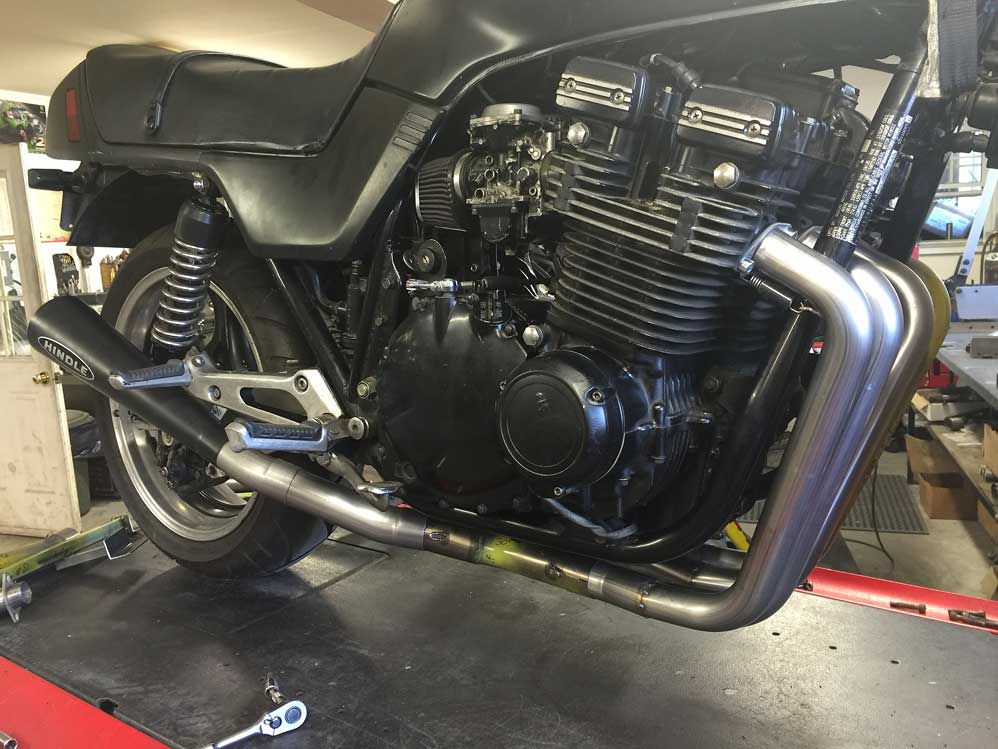

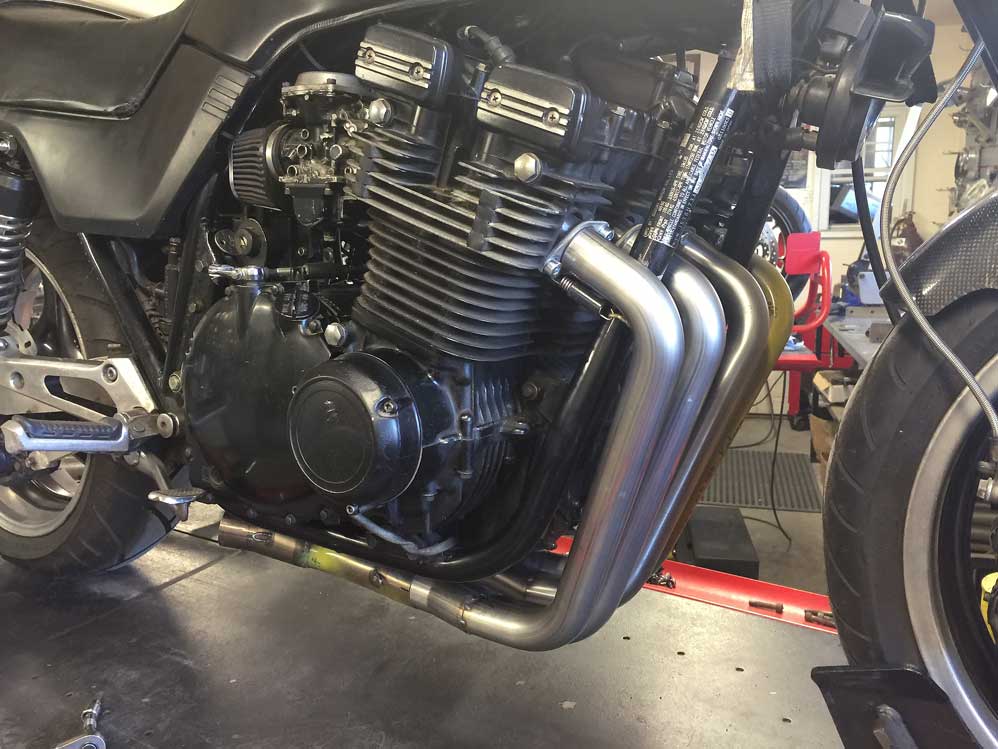

The pictures are of our prototype system with yellow paint on master sections and messy welds and a black painted megaphone!! I apologize for not having proper images of this beautiful system.
I will chase down a client and get some better pics on board shortly. If you look at the Katana system then you can see the quality and pretty much the same fit as your GS1100.
Ripple Rock Racers new RRR/Hindle SS Systems are developed to produce maximum horsepower and maximum torque with our 4-2-1 Design. The System is fully spring mounted as per the best race systems. Our super thin wall stainless steel construction is strong, extremely durable, rust free and super light. The complete system with muffler weighs only 10 lbs. The GS1100/1150 systems require centerstand removal. These systems come as complete systems with a choice of 12” or 16” Megaphone Mufflers. Either size muffler can be had with a classic tip or the slash/cut reverse cone tip. The systems are also available as “headers only” which is complete less muffler. The megaphone mufflers are tuned to work with our headers and provide a deep rich sound, the 12 inch is a bit louder than the 16” but either is fine for street use anywhere. Complete System is $774.90.
Note – to help decide on muffler length and tip, look at my separate muffler section “RRR/Hindle Megaphone Mufflers” on page 1. These are the muffler choices supplied with each system and each picture has a descriptive caption.
